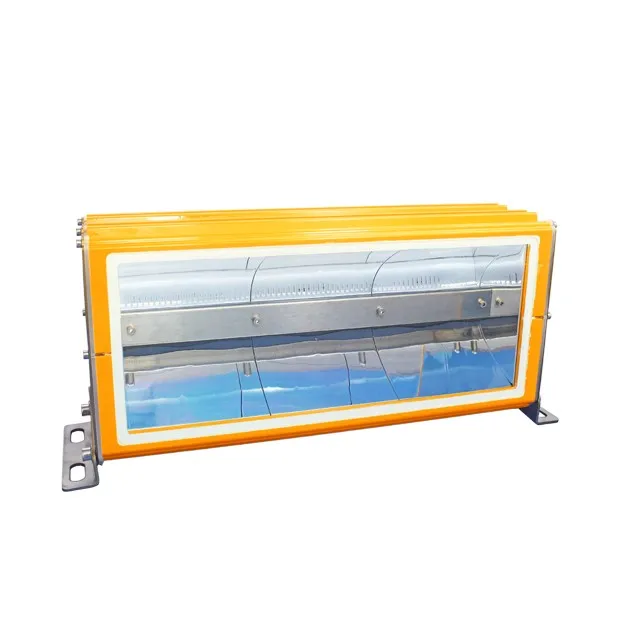

Chimney ICAO Certificate AC110V White LED 200000cd High Intensity Aircraft Warning lights 90 degree

Product Description

Item	Parameter
Model	CM-17-B
Operating Voltage	AC90-260V
Power consumption	≤100W
Flashing frequency	40~60times/min
Light intensity	Background Luminance
Light Intensity	≤50Lux 2000cd(±25%)
	50~500Lux 20000cd(±25%)
	>500Lux 200000cd(±25%)
Life span	>100,000 hours
Emitting color	White
Beam angle	90° horizontal
Beam angle	3-7° vertical beam spread
Method of synchronization	Same power supply voltage signal mode
Overall size(mm)	470mm×204mm×134mm
Installation size(mm)	445mm×70mm×4-M10
Ingress protection	IP65
Lightning protection level	10KA
Operating temperature	-40℃~55℃
Net weight	8KG
Wind load	80m/sec.

The house of the light adopts Aluminium alloy, Lens of Tempered glass; the structure is high strength, resistance to corrosion
Use the optical design of parabolic reflector, the visual range further and angle more accurate.
Light source adopts high quality LED which are light efficiency 100LM/W, low power consumption, long lifespan up to flash 100,000 Hrs
Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by controller
Same power supply voltage with synchronous signal, integrate in power supply cable, emliminate the damage by error installation caused.
Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment.
Integral structure, protection lever of IP65.
Ignitability rate UL-94V0, fit for all kinds of industrial situation .
GPS synchronizing function is available.
