30meter communication Towers Airport 32cd Red Steady Type B Low intensity solar powered obstacle light

Application

It is suitable for installation on fixed buildings, structures, such as electric power towers, communication towers, chimneys, high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles to warn the aircraft.



Key Feature of CK-11L-TZ-S

1.Overview

Feature:Low power, easy to install, Solar Powered.

Application:It is suitable for installation on fixed buildings, structures, such as electric power towers, communication towers, chimneys, high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles to warn the aircraft.

Name:Solar Power Double Low Intensity Intensity Obstruction lights(Solar Power Supply,Main Replacement Lamp)

Operation Environment:

Working temperature: -40 ° C to +55 ° C; Relative humidity: 0% ~ 95%;

Wind power: no more than 240km/h; rain: exposed to rain in any wind direction;

Salt spray: exposed to salt spray; irradiation: exposed to solar radiation.

Working conditions: input voltage: solar DC6.5V ± 10

2.Safety precautions

l Avoid installing at the top and bottom of the building. If installed on the top floor of a building, it is best to connect the ground wire to the lightning protection or install a lightning rod to avoid lightning strikes.

l When working on the product, it is strictly forbidden to open any part of the lamp body to prevent danger.

l This product will have a temperature rise during operation, which is normal.

l This product is a sealed structure. Non-professional maintenance personnel should not disassemble it. Once found, the company will not guarantee it.

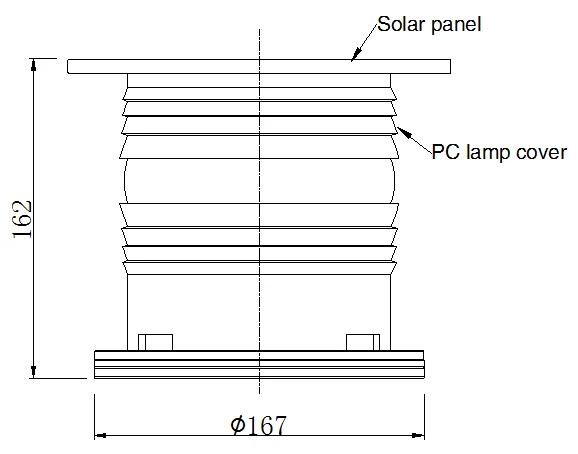

3.Structure

4.Technical Feature

a) Main Feature

• UV-resistant PC material lampshade, with a transparency of over 90%, strong impact resistance, excellent harsh environment adaptability.
• high structural strength, UV resistance, corrosion resistance.
• The lithium battery is used for energy storage, and the electric conversion efficiency is high.
• The micro-power intelligent control system ensures precise power management and low power consumption.
• Low carbon tempered glass monocrystalline silicon solar panels with high energy efficiency (>18%) and a lifetime of more than 20 years.
• High-efficiency LED light source with long life (more than 100,000 hours), low power consumption and high brightness.
• A light-sensitive probe that conforms to the natural light spectrum curve is used to precisely control the automatic switch of the lamp.
• The internal self-contained anti-surge device makes the circuit work more reliable.

b) Main Parameter

LED Source	LED
Emitting Color	Red
Flash Frequency	Steady Burning
Direction of illumination	Horizontal omnidirectional 360° vertical ≥10°
Light Intensity	At night (<50cd/m2): ≥32cd
Power source	≤3W
LED lifespan	≥100,000 hours
Protect Ingress	IP65
Surge Prevention	10kA (Built-in Lamp)
Refer Net Weight	1.2kg
Installation Size	120.2mm×120.2mm-4×M10
Environment Humidity	Suit 0%~95%
Environment Temperature	-40℃ to +55℃
Salt Spray	Salt Spray in the air
Wind Load	240km/h

Project Pictures

Recommend Product

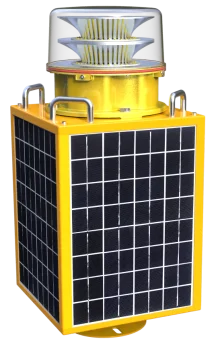

Double Solar Power Medium Intensity Obstruction lights

Type A high intensity Obstruction lights

Type B Solar Power Medium Intensity obstruction lights

Why us?

1.Have 1 office and 2 factory,total 6000 square meter

2.Have Own R&D Department,We can research the new product by ourself.

3.Have own optical laboratory

4.Have own QC Team

5.Supply Communication Tower,Transimission Towers,Chimney,Building Designing for Aviation obstruction lights.

6.7/24 hours Sales Team and After-Sales Team

Product Warranty

• Full warranty 3 years: We will provide Full three years’ guarantee for free that product is problem caused by quality.
• Free Maintenance 5 years: From the 4th year to 5th year, We will provide product maintenance for free, when it’s damage by improper using or some other
  reason.(Note: Client should pay the freight to send product back)
• When you use our product and have a failure, please contact with us. Don't take it apart and repair it by yourself, Otherwise, we are not responsible for warranty.
